Battery specifications
High voltage battery
| Battery type | Rated capacity (Ah) | Rated voltage (V) | Weight (kg) | Temperature range |
| Li(NiCoMn)O2 | 146 | 685 | 596±17 | Charging: -20℃~55℃ Discharging: -35℃~55℃ |
12 V battery
| Battery model | Battery type | Rated capacity (Ah) | Weight (kg) | Temperature range |
| LPF | LiFePO4 | 12.5 | 2.5 | -40℃~65℃ |
Battery conformity
All battery and battery-related components in the car are compliant with EU regulation 2023/1542. CE-markings are found on or near each battery or battery-related component.
Note: For increased accessibility, certain labels are placed under the hood instead of on or near each component.

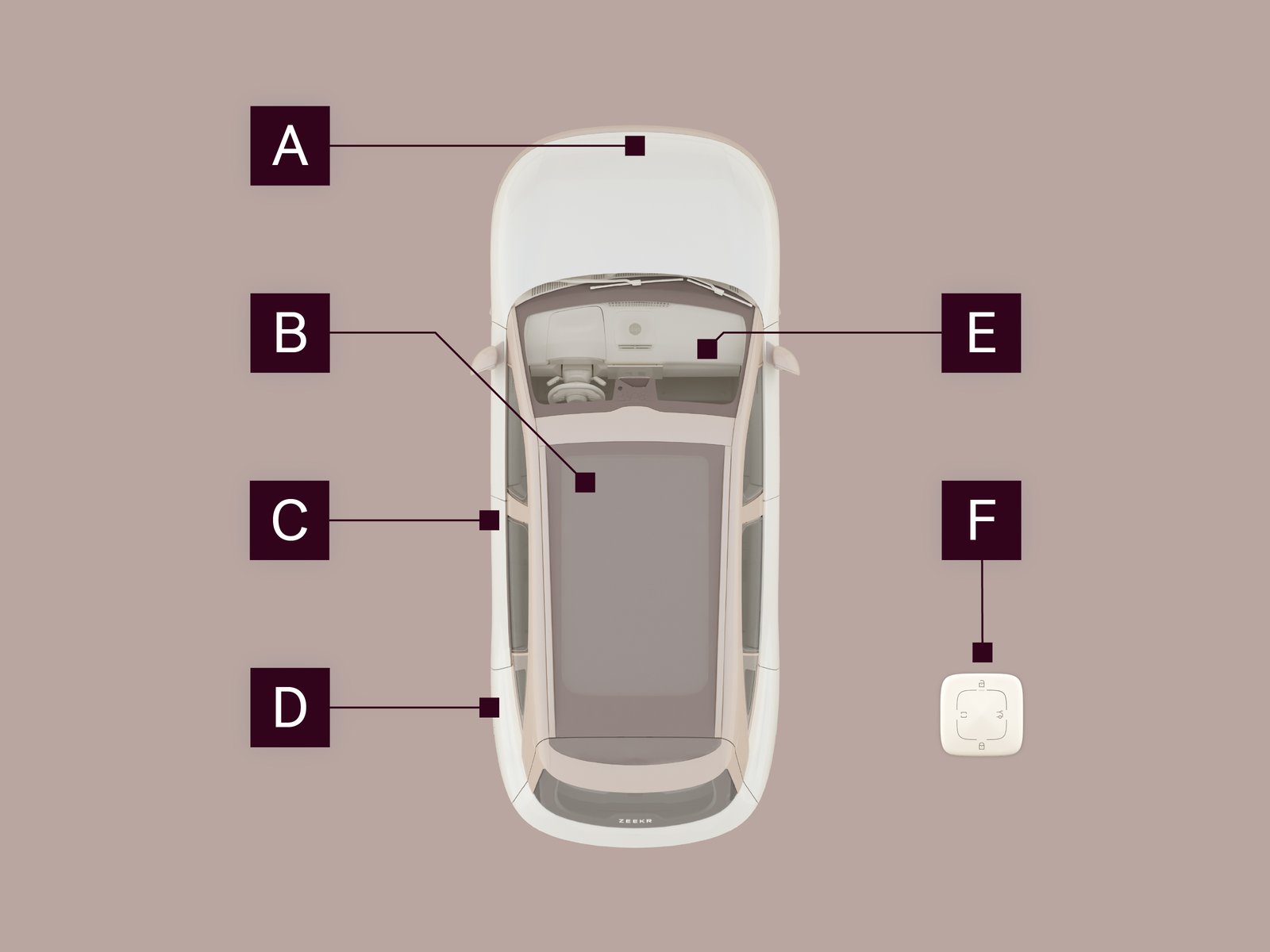

Refer to the image and table to locate each battery or battery-related component.
| Label | Location | Description |
|
Under the hood | Battery backup sounder |
|
Under the driver seat | Low voltage battery |
|
Under the cabin | High voltage battery |
|
One inside each wheel | TPMS |
|
In the glovebox | TCAM |
|
Inside the keyfob | Keyfob |
Specific information including supplier information and contact information is visible on the labels on the specific component. The label specifications and declarations of conformity are also available at rmi.zeekr.eu.
