Warning
|
• |
Do not exceed the maximum gross weight of car (and trailer) permitted by your driver's license and the car specifications. Doing so is both illegal and unsafe and could result in death or serious injury. |
|
• |
Heavy or improper loading can negatively impact the handling of the car. Follow the loading instructions. Failure to do so can lead to death or serious injury. |
|
• |
Do not put sharp objects on top of the concealing panel. Doing so will cause them to be thrown through the cabin at high speeds if there is a collision, which could lead to death or serious injury. |
|
• |
If the concealing panel interferes with the ISOFIX top tether straps, it should be removed. Do not try to force the tether straps past the panel. Do not skip using the top tether straps, as doing so could lead to death or serious injury. |
|
|
NOTICE
|
• |
Do not put heavy objects on top of the concealing panel. Doing so could damage the panel. |
|
• |
Do not hang items heavier than 3 kg on the clothes hooks in the passenger compartment or the tailgate. Doing so could damage the hooks. |
|
The car has storage areas in and around the front and rear seats and the luggage compartment.
When loading the car:
|
• |
Cover or wrap sharp edges with soft material |
|
• |
Spread the weight equally across the luggage compartment |
|
• |
Load heavy items first (as low as possible) |
|
• |
If only loading one heavy item, place it as close to the backrest as possible in the middle of the luggage compartment |
|
• |
If the seats are folded, avoid placing the heaviest items on the backrests only. Spread the weight equally across the luggage compartment |
Interior storage

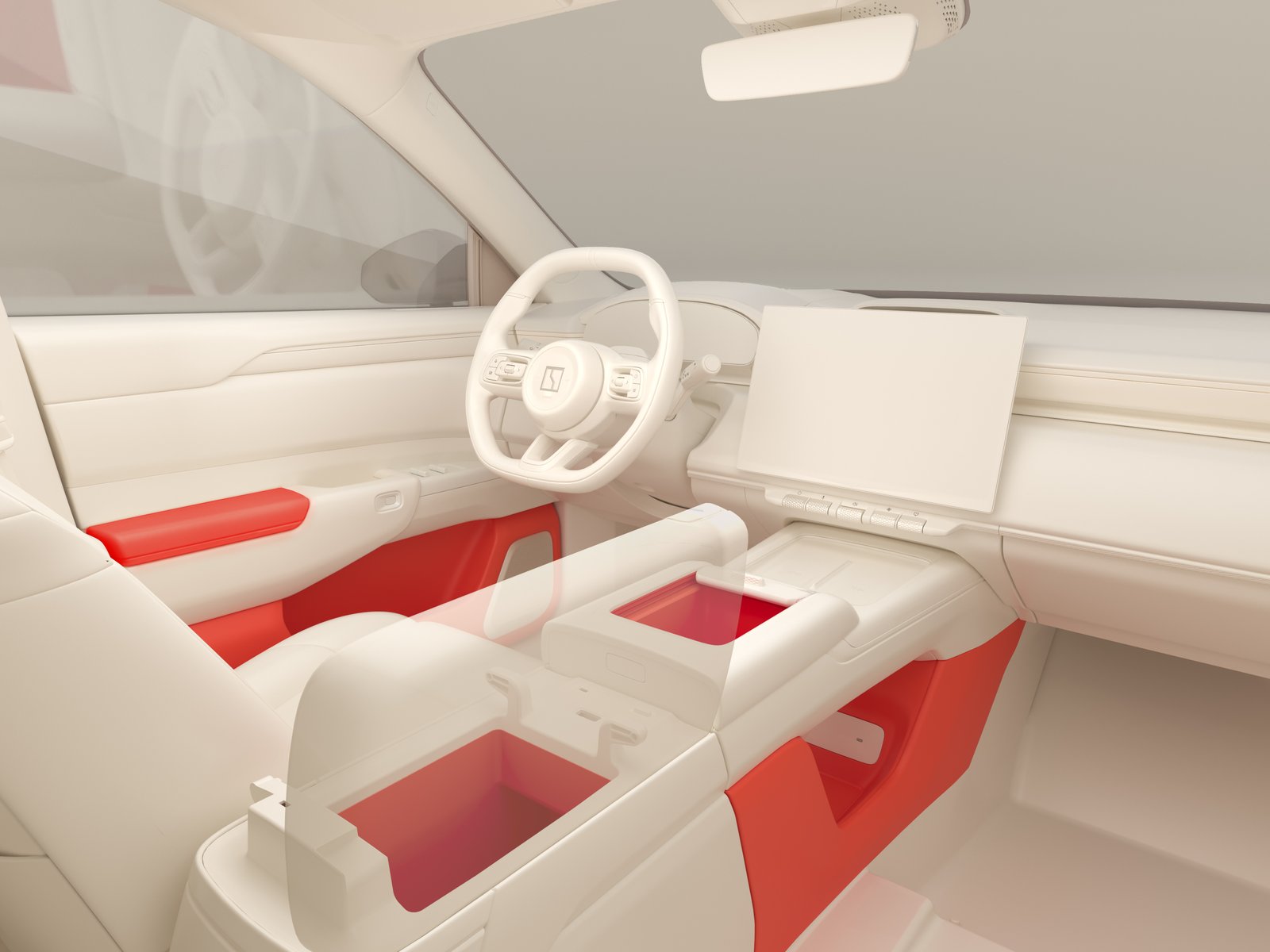

Front seat storage areas
The car has the following storage areas around the front seats:
|
• |
Storage compartments in the door panels |
|
• |
A storage area below the wireless charging pads |
|
• |
A storage area in the tunnel console with cup holders |
|
• |
A storage area under the front armrest |
|
• |
A storage area under each front door armrest |

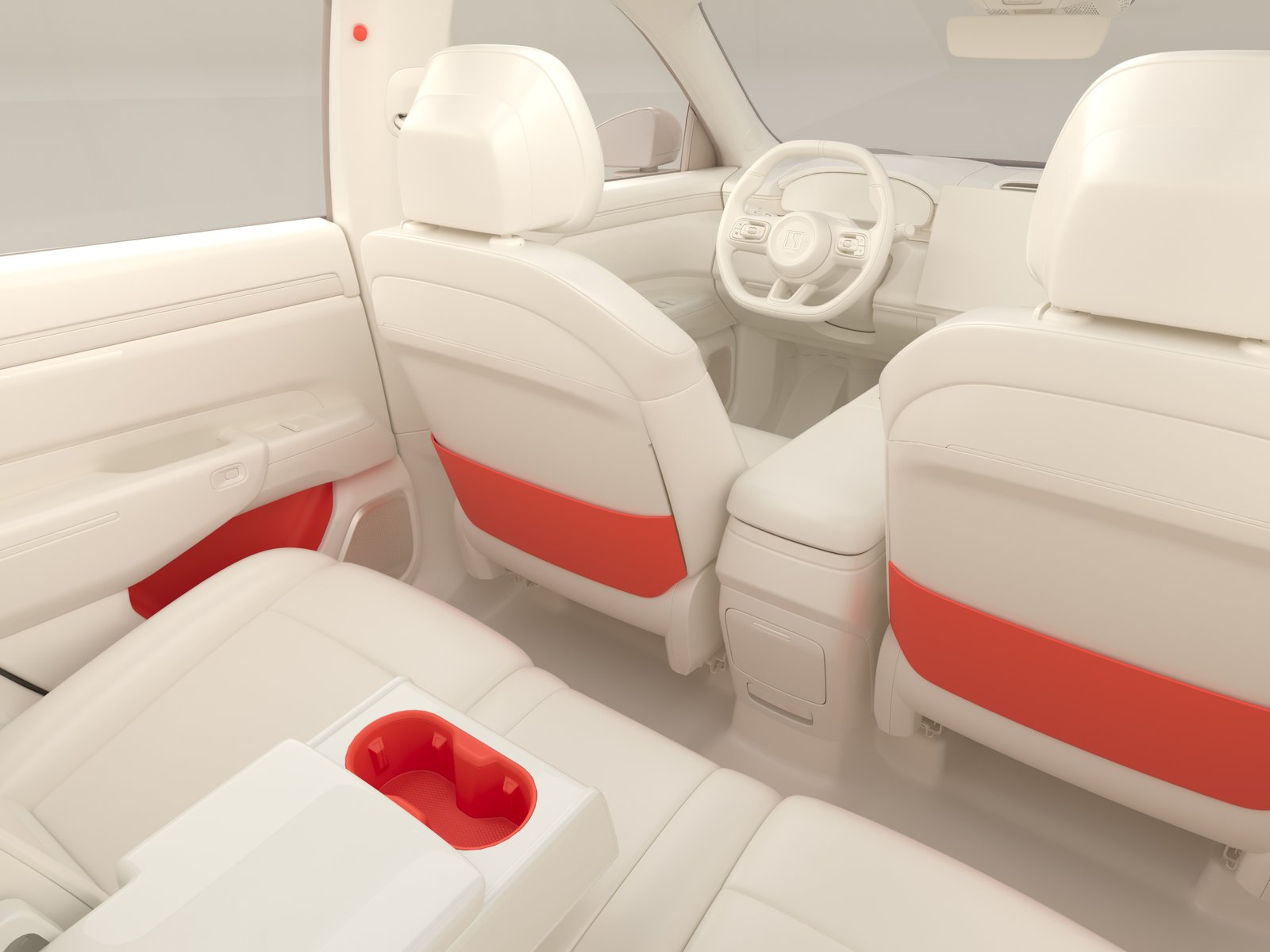

Rear seat storage areas
The car has the following storage areas around the rear seats:
|
• |
Storage compartments in the door panels |
|
• |
Storage pockets on the back of the front seats |
|
• |
Two cup holders and a storage compartment in the rear armrest |
|
• |
Clothes hooks – one on each side |
|
• |
Storage boxes under the seats |

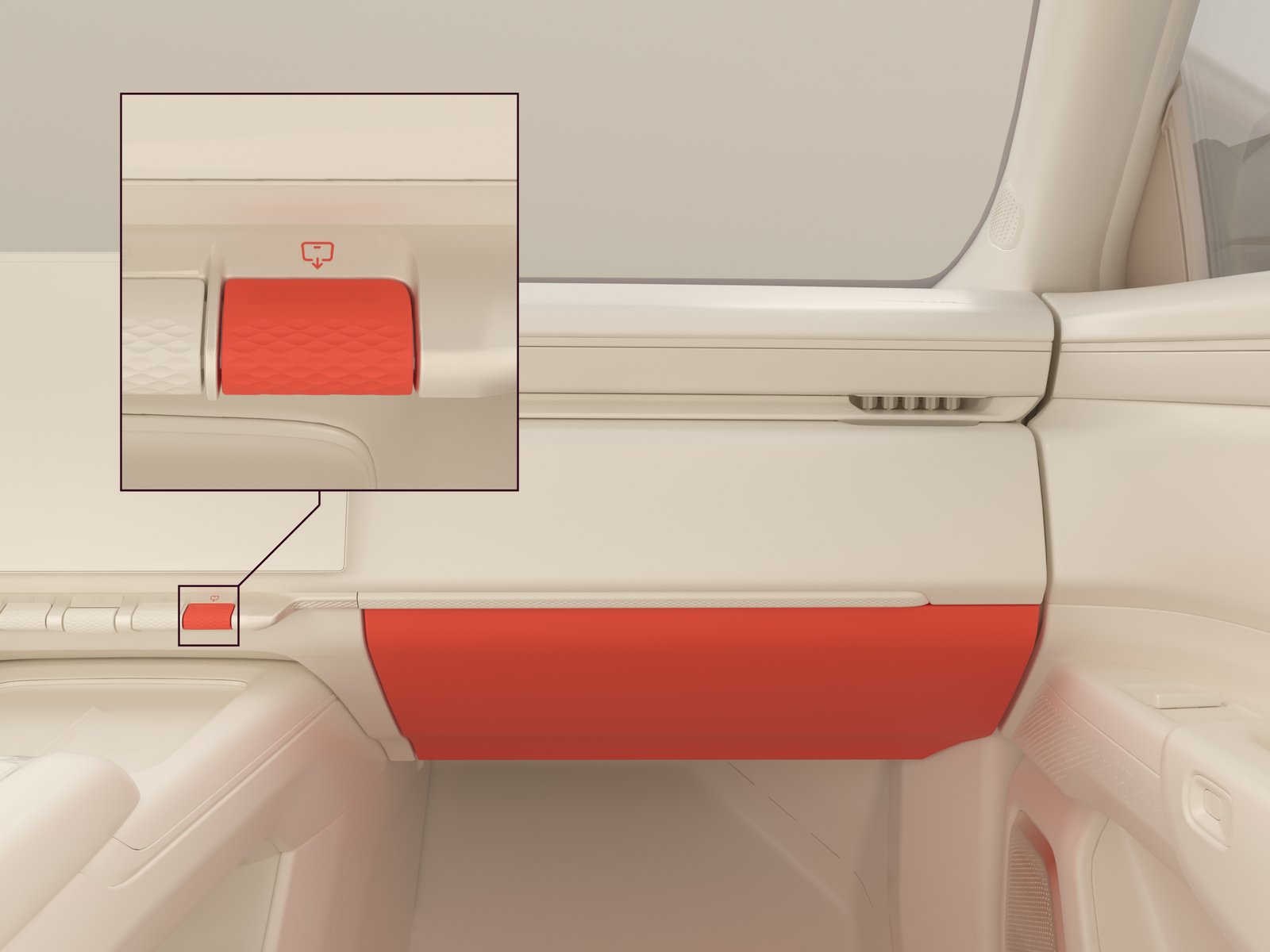

Glovebox
The glovebox is a concealed compartment that can be locked with a pin code.
To open the glovebox, press the button on the tunnel console. To close the glovebox, push it closed until it locks shut.
To set a pin code and use the glovebox pin protection function:
|
1. |
Navigate to  .
|
|
2. |
Press Glovebox Password Protection.
|
If a pin code has been set, the glovebox allows five access attempts. After entering an incorrect pin code five times, a pop-up appears where a new pin code can be requested. The pin code appears in the Zeekr app on the owner’s phone. If a pin code reset is not required, wait two minutes and then try another pin code.
To remove the pin code:
|
1. |
Navigate to .
|
|
2. |
Press Glovebox Password Protection.
|
Note: You must enter the pin code before removing it.
Luggage compartment
The luggage compartment is the main storage area for loading, accessed through the tailgate. It is possible to fold the rear seats for more loading space. For information on how to open the tailgate or set the opening angle, see
Tailgate, and for more information about how to fold the rear seats, see
Fold the rear seats.

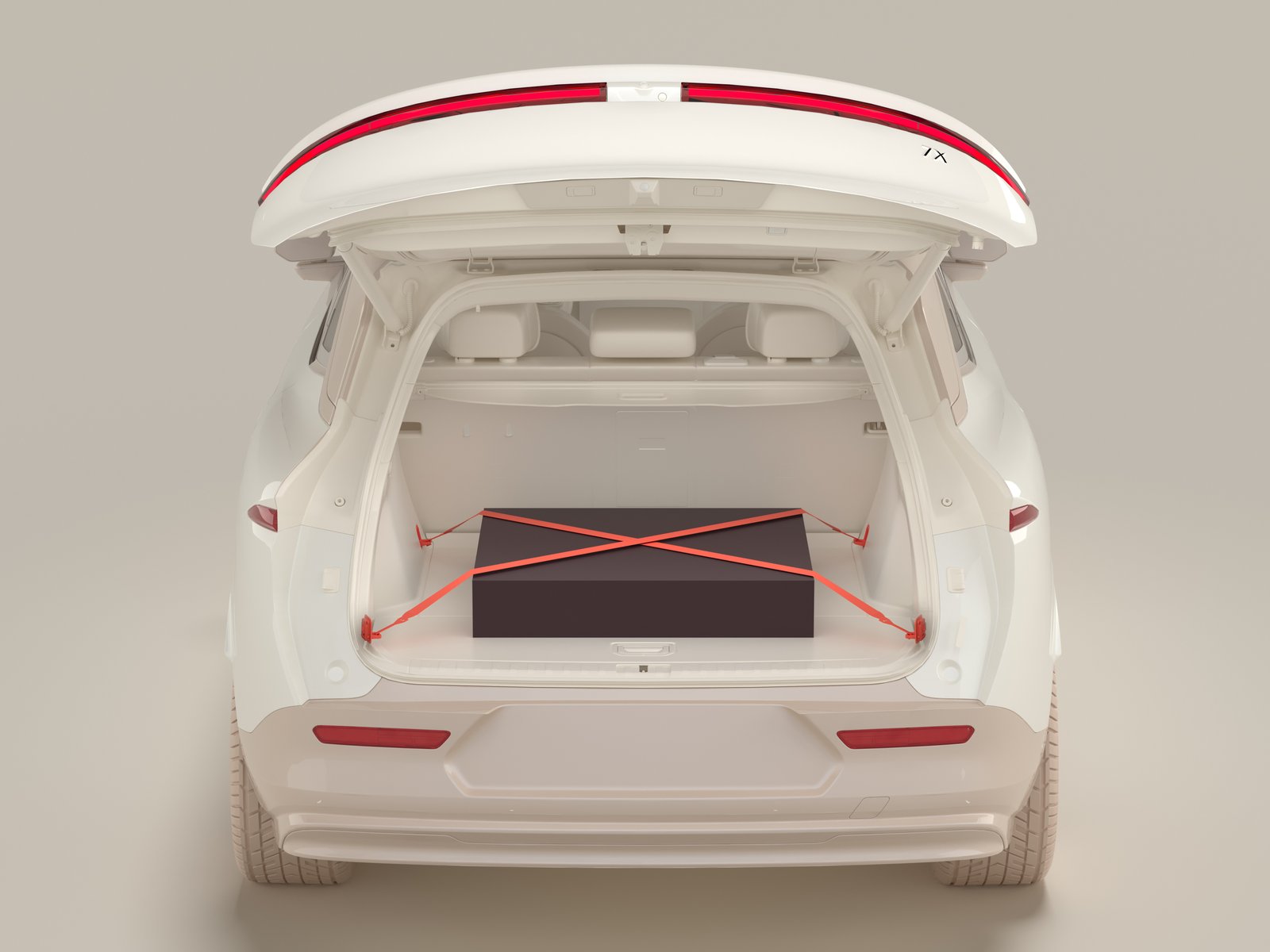

The luggage compartment is equipped with hooks that should be used to strap down luggage that might otherwise slide around and cause damage.

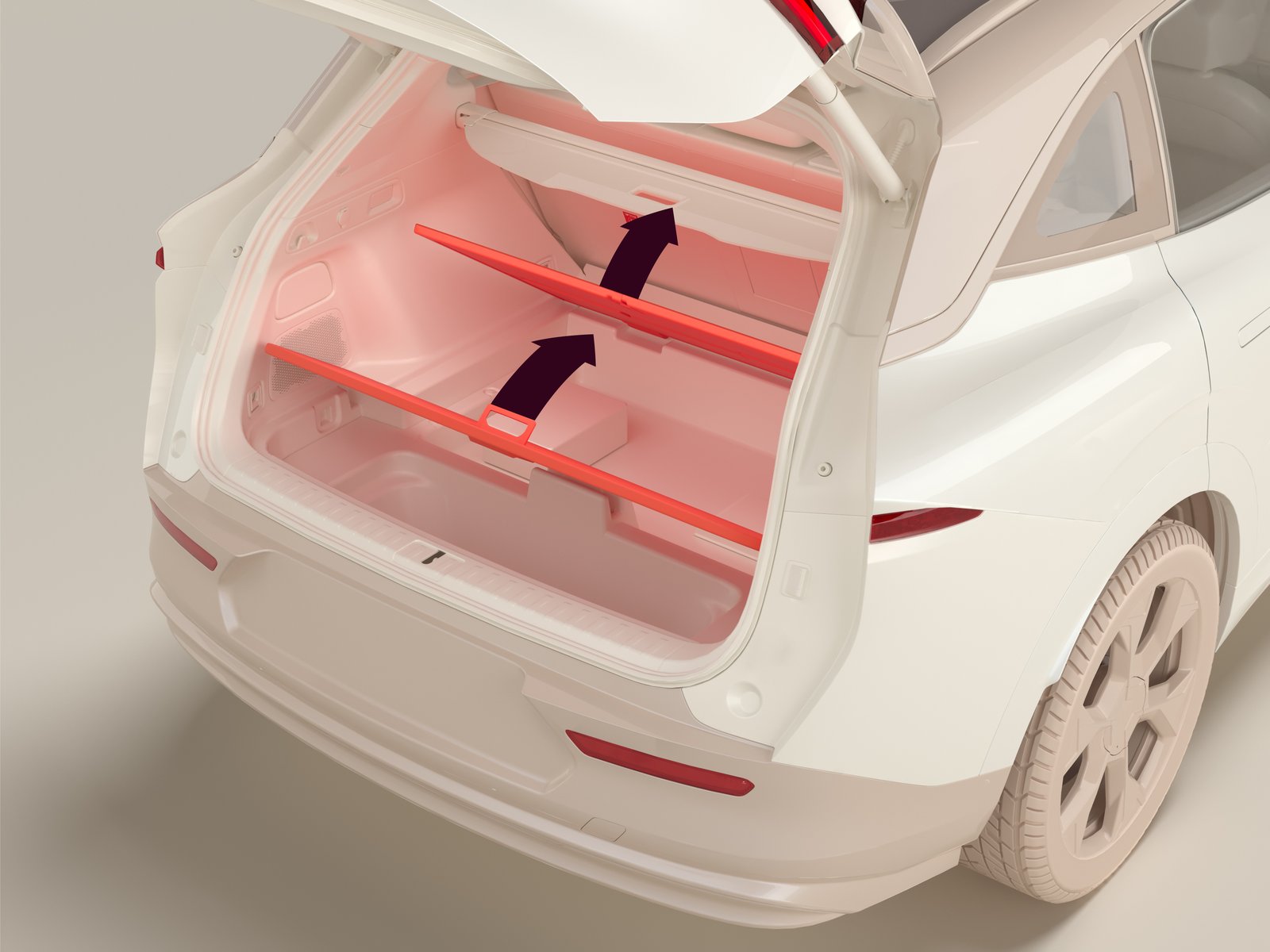

Luggage compartment storage area
There are two small storage areas underneath the luggage compartment floor. This is where the on-board toolkit and charging cable is stored.

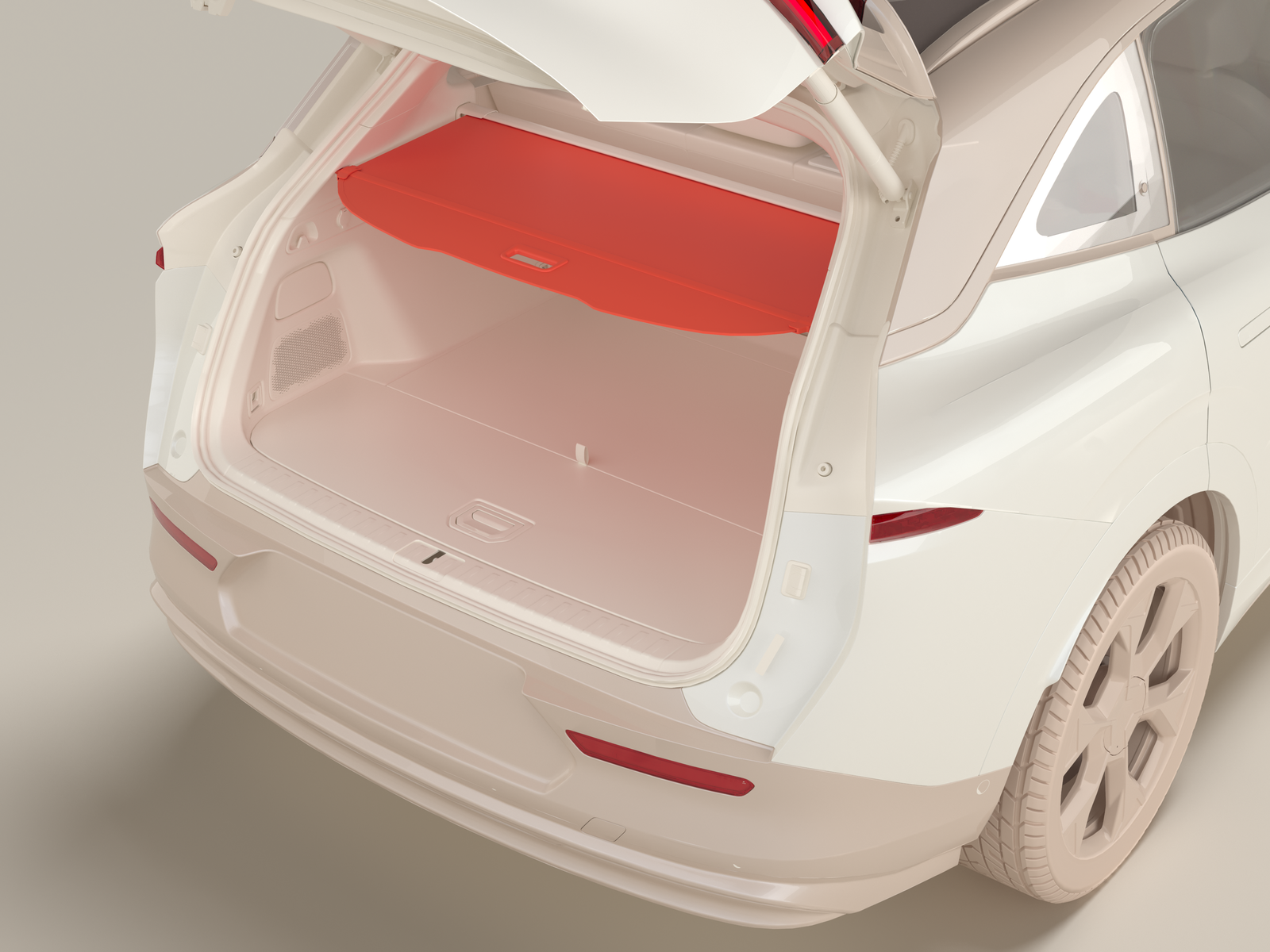

Luggage compartment privacy
There is a concealing panel to prevent people outside the car from seeing the contents of the luggage compartment. The panel has two pins on each side that hold it securely in the guide rail. The panel can be lowered and folded away against the backrests when not needed or if you need to load taller items.
Nothing heavier than light clothing should be put on top of the concealing panel. If the concealing panel interferes with the top tether straps for the rear ISOFIX seats, it should be removed.
To raise the panel:
|
1. |
Pull the bottom of the panel up and away from the backrests, letting it rotate on the inner pin. Make sure the outer pin comes past and above the guide rail.
|
|
2. |
Slide the panel inwards, towards the backrests.
|
|
3. |
Lower the outer pin securely into the guide rail.
|
To lower the panel:
|
1. |
Lift the outer edge of the panel upwards to remove the outer pin from the guide rail.
|
|
2. |
Slide the panel outwards, away from the backrests until the inner pin is in line with the opening on the guide rail.
|
|
3. |
Lift the inner edge of the panel upwards to remove the inner pin from the guide rail.
|
|
5. |
Store the panel safely.
|

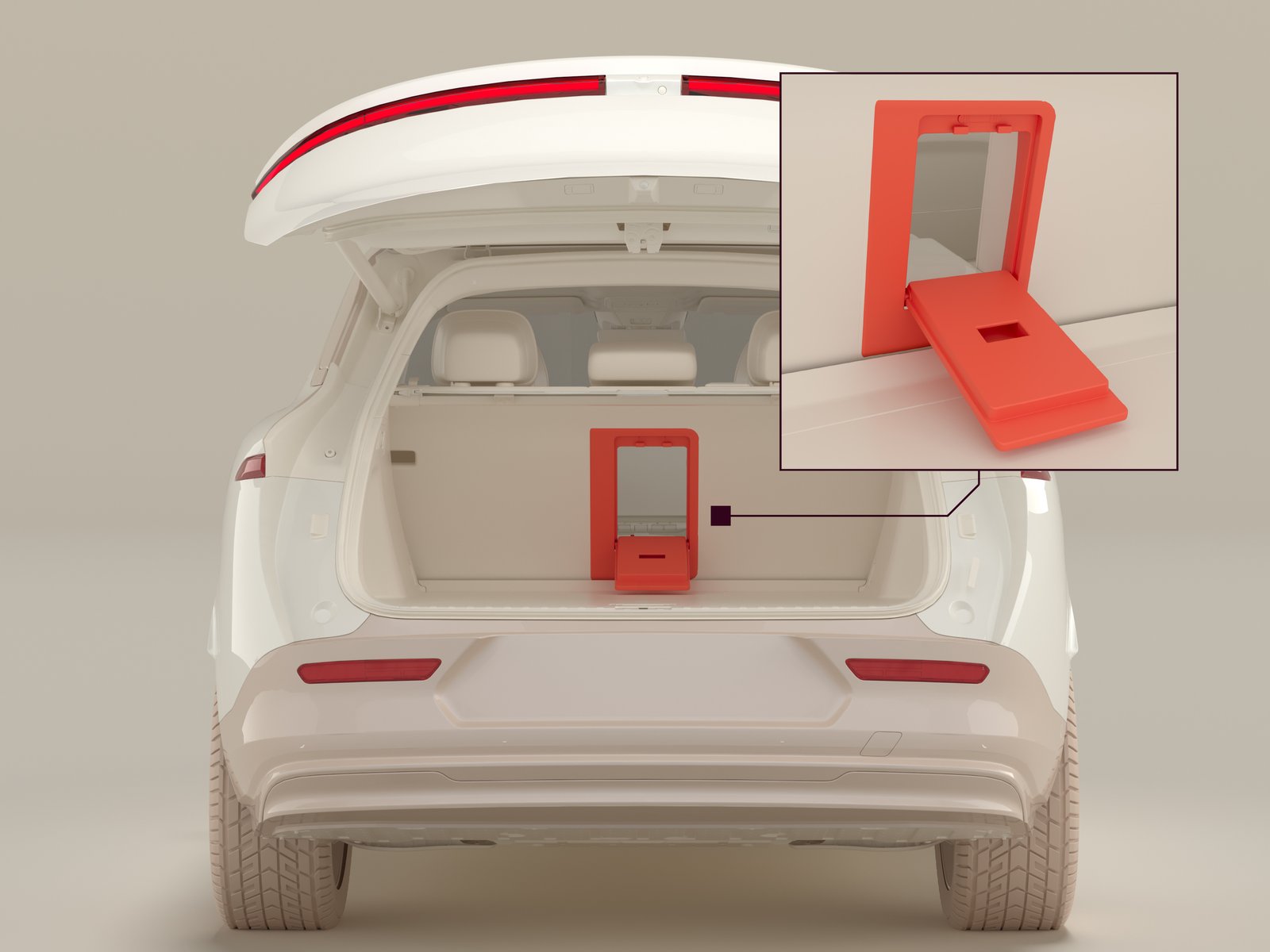

Ski hatch
The ski hatch in the rear seat backrest can be opened to store long, narrow items such as skis. To open the ski hatch:
|
1. |
In the luggage compartment, pull the ski hatch handle.
|
